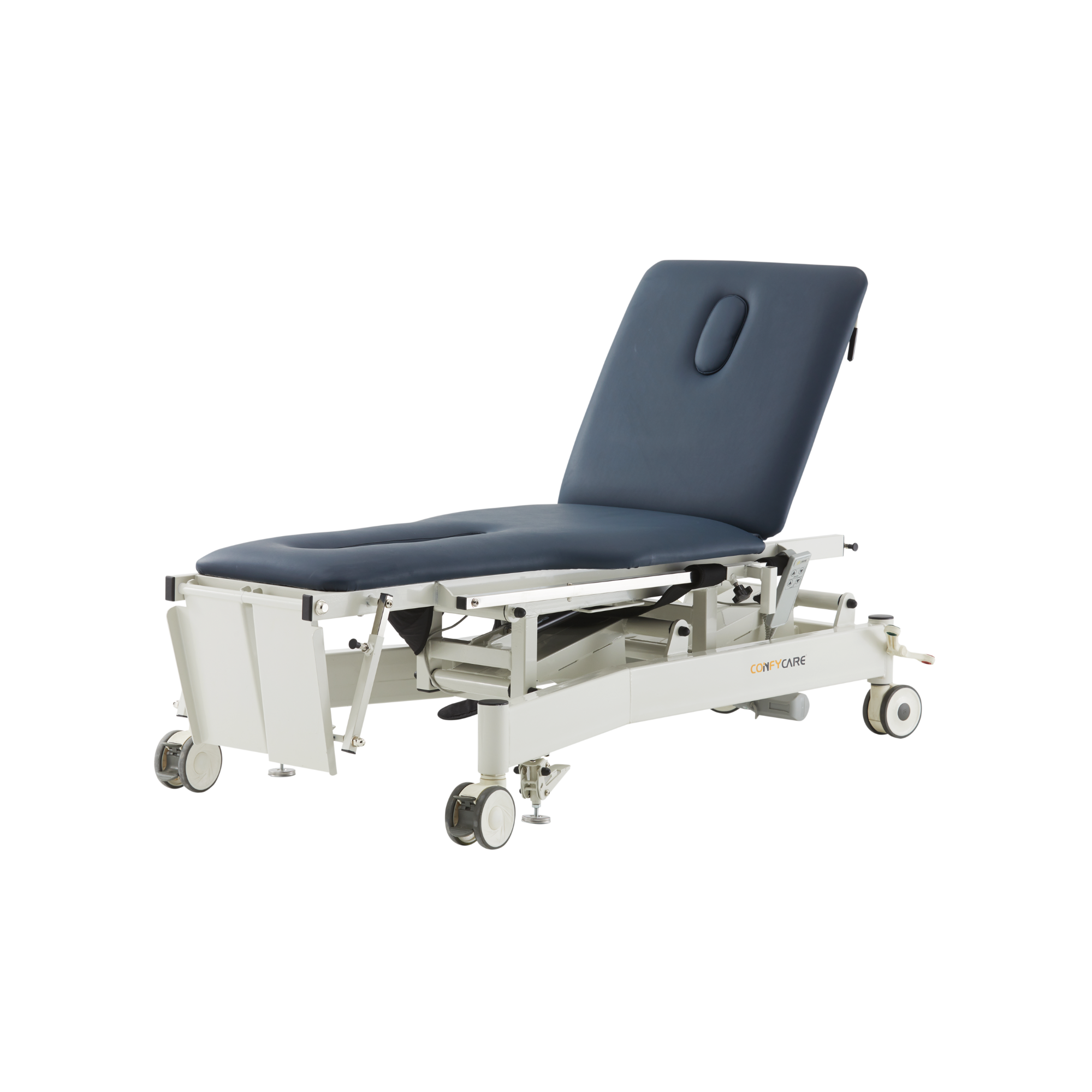

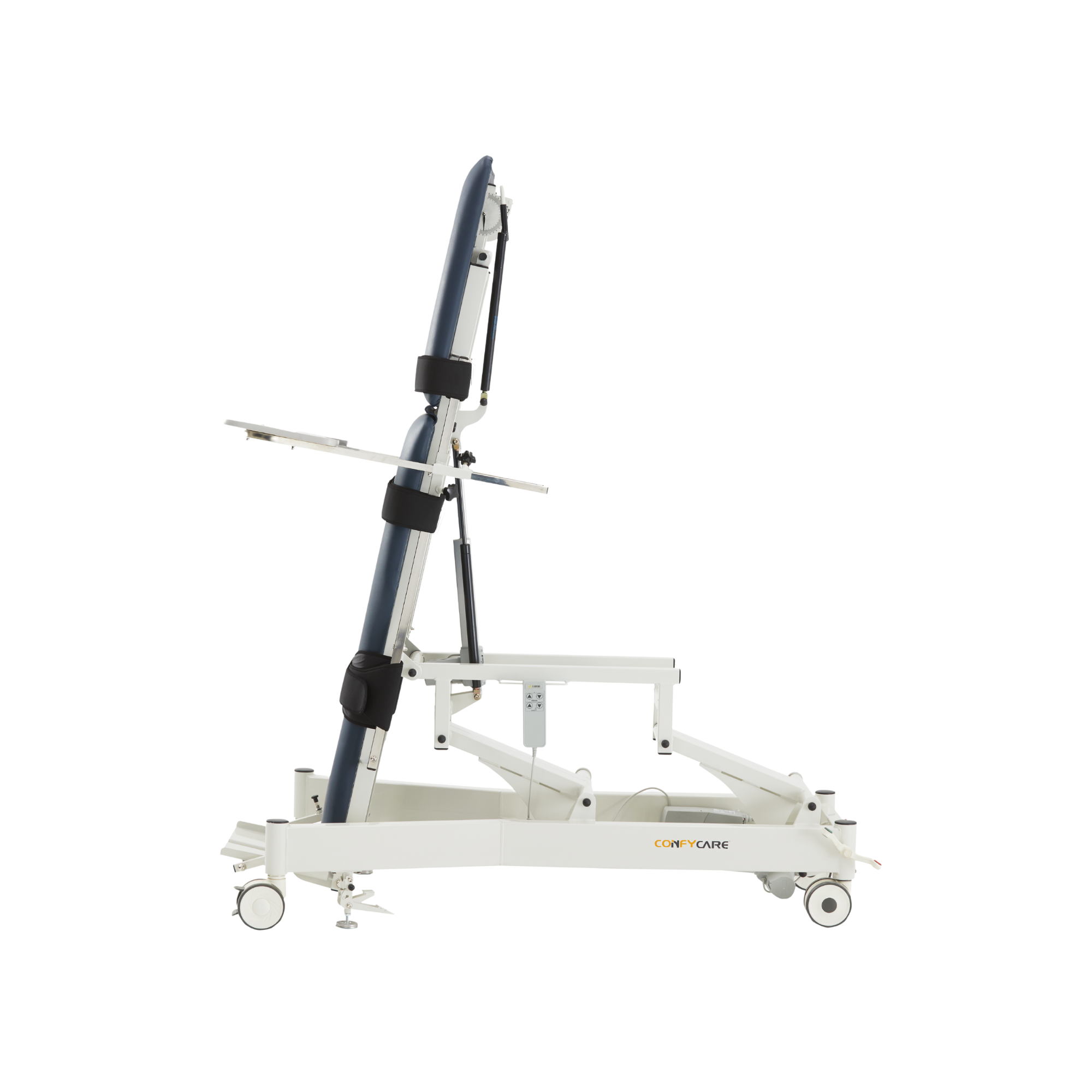

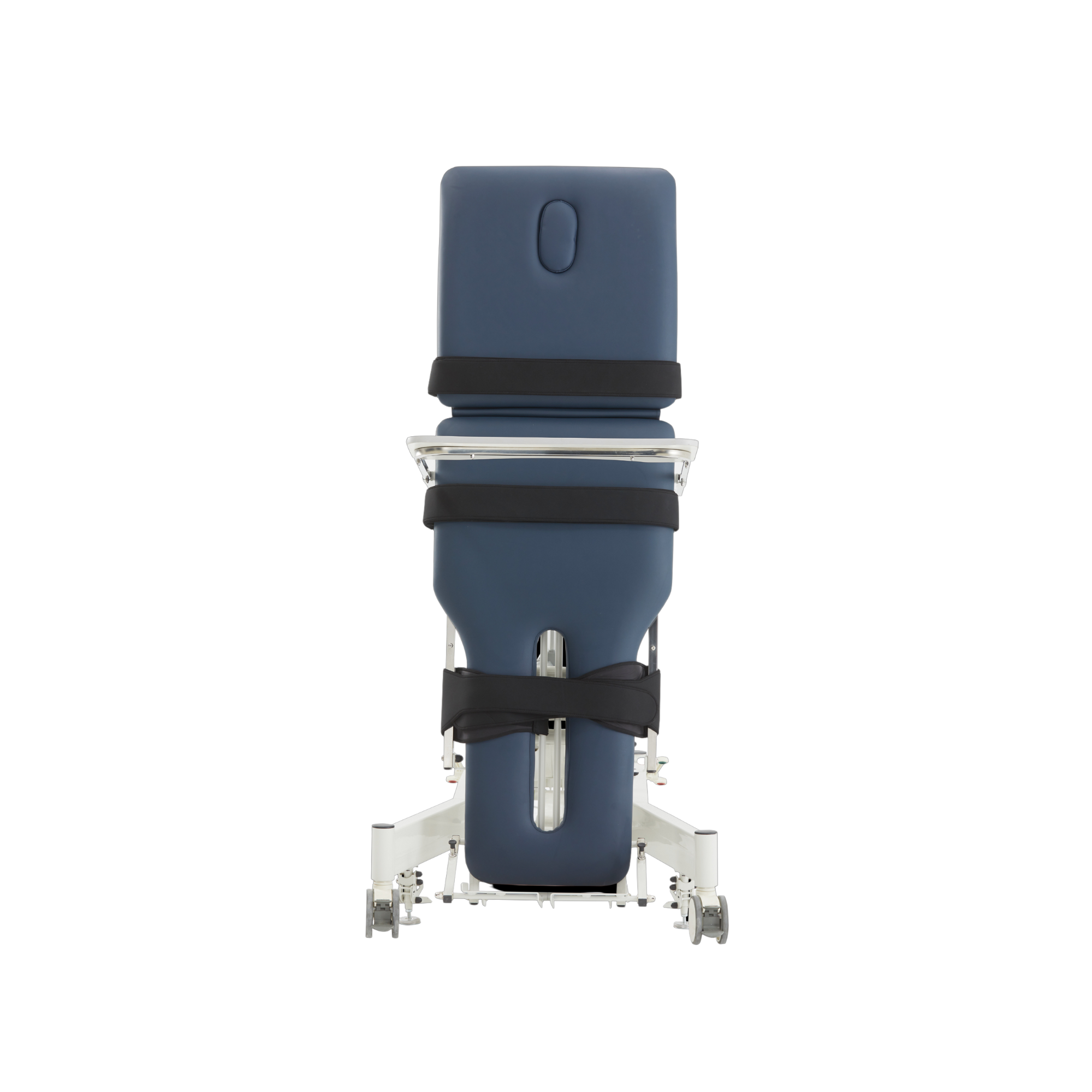

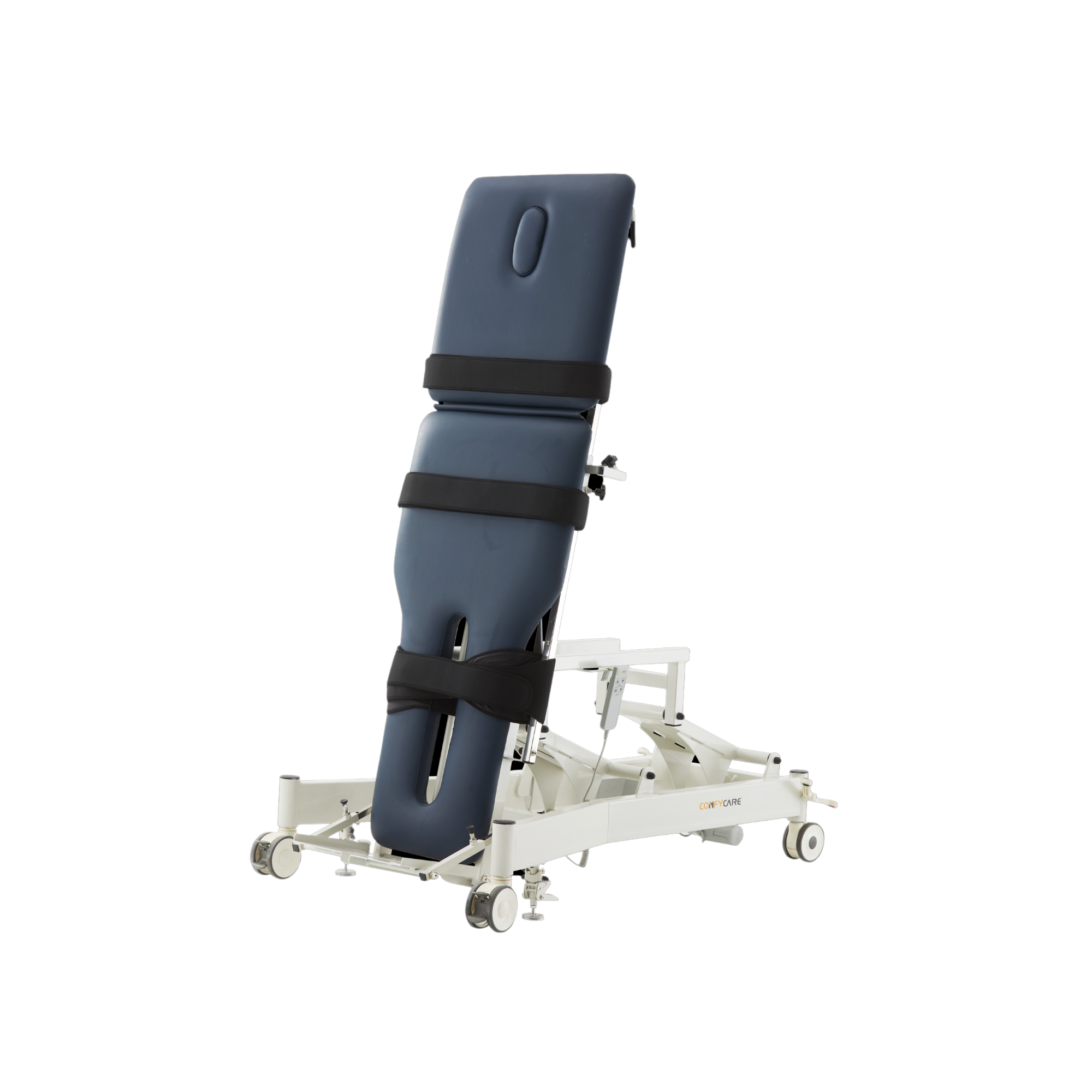

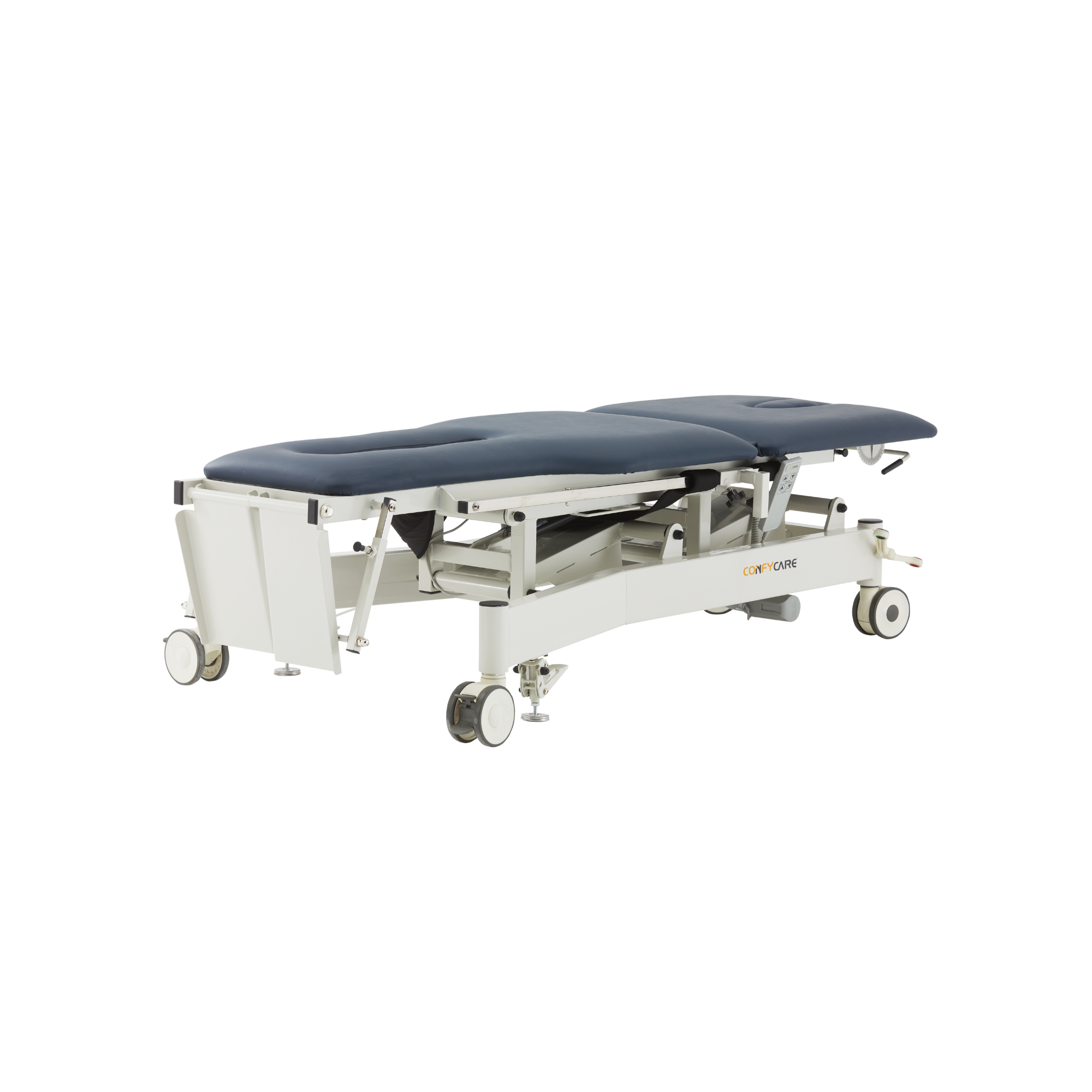

Our tilt table offers a simple out of the box solution for physiotherapists and in home care patients alike. This two-section tilt table including patient straps, activity tray and individually adjustable foot plates will suit the most demanding rehabilitation regime and perform for the long term.

Features:

• Electric Hi Lo & tilt operation by hand switch
• Tilt angle indicator included
• Activity tray & patient straps included
• Head section has face hole and plug
• Sleek design with rounded frame legs for safety
• Adjustable feet for uneven surfaces
• 5cm retractable castors for safety and mobility
• Reliable TiMotion motor
• Supportive foam padding

Specification:

• Total Length: 194cm
• Width: 64cm
• Backrest length: 66.5cm
• Long section length: 124cm
• Adjustable backrest through gas operated strut to +75 Degrees
• Adjustable individual foot plates from +20 to -10 Degrees
• Height tilt to +85 Degrees
• Height ranges from 59cm to 104cm in approx. 30 seconds
• Padding thickness 5cm
• Foam Density: 36kg/m3
• Upholstery: Heavy Duty PVC vinyl that is fire, stain, mildew, oil, water, and wear resistant
• Warranty: 5 Year Construction, 3 Years Electrics
• Certification: CE, FDA, ISO 13485-2016
• Weight Capacity: 225KG

Order Codes:

Maintenance:

Please make sure your table is serviced yearly to ensure your table functions to its optimum. Lubrication of pivot points and moving points on your table must be done on regular basis.
